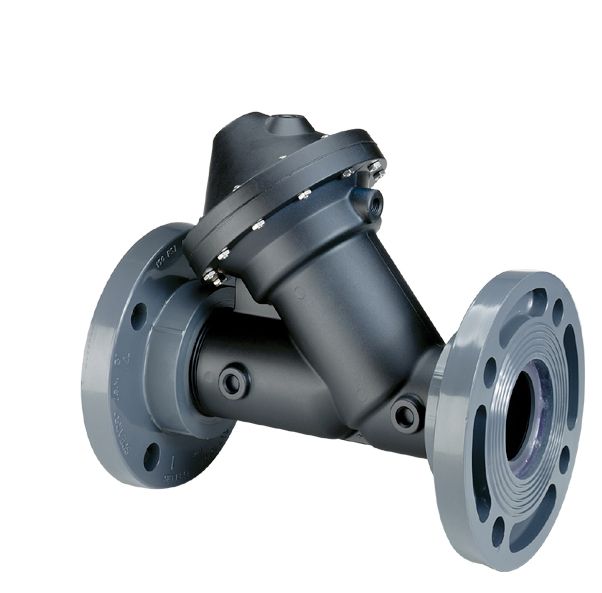

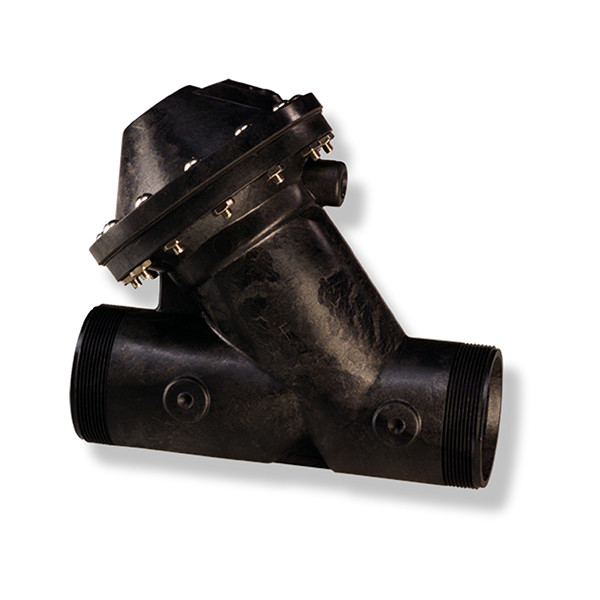

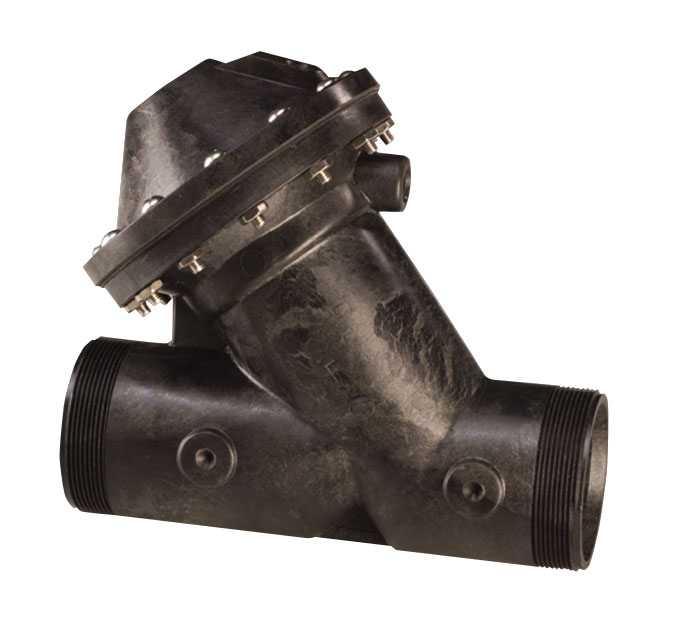

AquaMatic Valve K52

½-inch to 2½-inch "Y" pattern diaphragm valves
Glass-filled thermoplastic body and cap

This product is manufactured in the United States of foreign and domestic parts.

Features & Benefits

  • Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss
  • Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
  • Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
  • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
  • Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
  • All internal parts in contact with media are made of composite materials
  • Can be actuated with either air or water as control fluid
  • Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that would rapidly corrode metal valves

Accessories & Options

  • Seal and diaphragm materials available
  • Spring assist (open or closed)
  • Normally open or closed
  • Position indicator
  • K55 isolated bonnet valve
