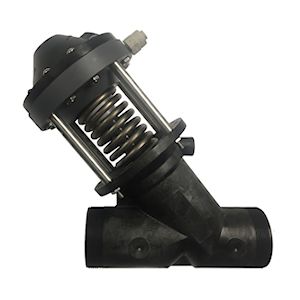

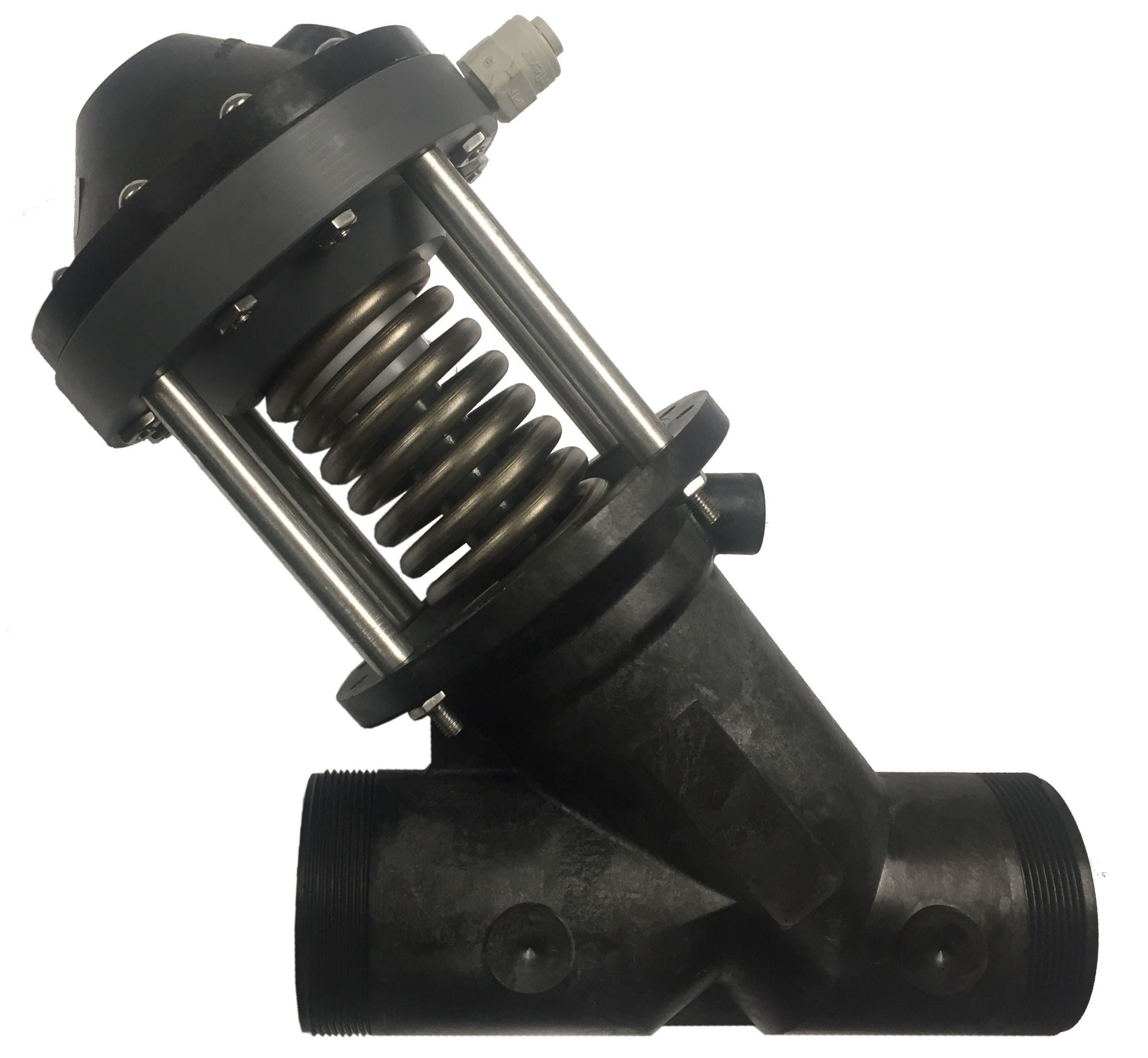

AquaMatic Valve K55

½-inch to 2-inch "Y" pattern isolated bonnet diaphragm valves
Glass-filled thermoplastic body and cap

This product is manufactured in the United States of foreign and domestic parts.

Features & Benefits

• Large Seat opening and high lift-disc for higher flow rates at a lower pressure loss
• Isolated bonnet feature physically separates line fluid from control fluid eliminating potential to contaminate control lines with corrosive fluids
• Failsafe closed options available to keep valve closed against 30, 60, or 100 psi line pressures without control pressure
• Pre-formed, stress relieved diaphragm minimizes fatigue, maximizes valve responsiveness and diaphragm lifetime
• All internal parts in contact with media are made of composite materials
• Can be actuated with either air or water as control fluid
• Designed for water treatment applications including those requiring acids, caustic and harsh chemicals that wouldrapidly corrode metal valves

Accessories & Options

• Seal and diaphragm materials available
• Spring assist (open or closed)
• Normally open or failsafe closed
• Flow control limit stop

Resources

• Instructions and Manuals
• Drawings
• Pictures
• Warranty

• Instructions and Manuals

  20160916 EN Aquamatic K55 Valve Spec Sheet

  42985 K55 Master Chart

  AquaMatic Valve K55 Overview

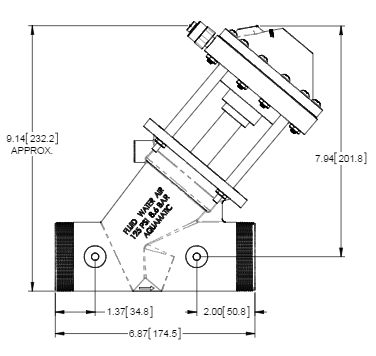

• Drawings

  1077694 AquaMatic 5524 Isolated Bonnet Diaphragm Valve Drawing

  1077693 AquaMatic 5521 Isolated Bonnet Diaphragm Valve Drawing

  1077692 AquaMatic 5520 Isolated Bonnet Diaphragm Valve Drawing

  ---

• Pictures





• Warranty

  Warranty: Three Year Limited Warranty Covering Material and Workmanship Defects. See full warranty
