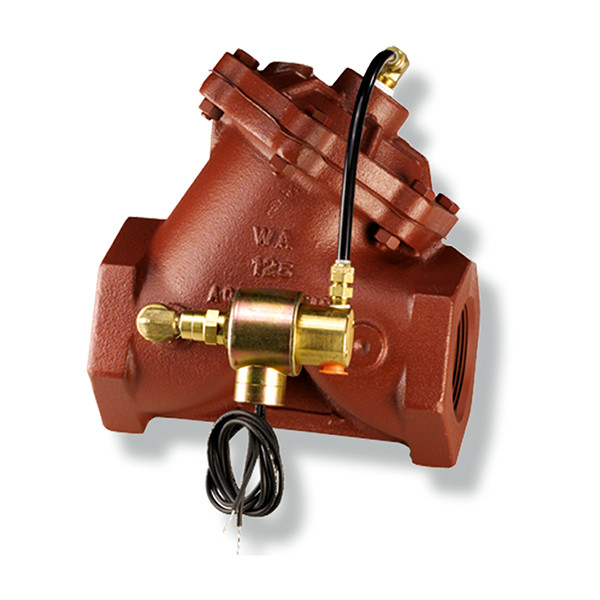

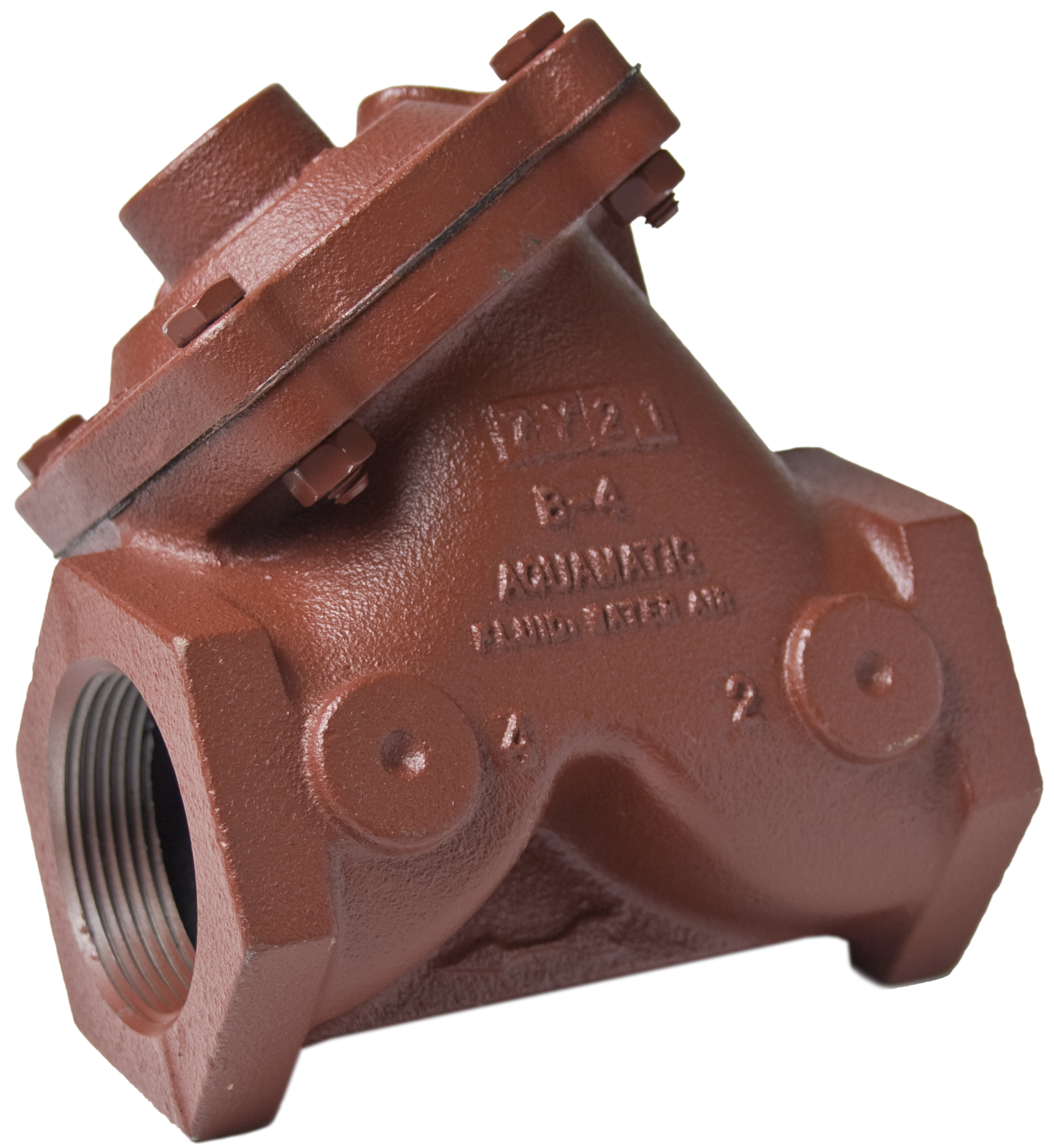

V42AquaMatic Valve V42

AquaMatic Valve V42

¾ - to 6-inch "Y" Pattern Diaphragm Valve
Cast Iron or Cast Brass Body and Cap

This product is manufactured in the United States of foreign and domestic parts.

Features & Benefits

  • Large seat opening and high lift-disc for higher flow rates at a lower pressure loss
  • Separate flow and control chambers permit positive closing without springs; and only nominal cost for spring assist opening for low-pressure and self-draining applications
  • Cost-effective solution both in initial cost, as well as lifetime maintenance expenses
  • Separate diaphragm chambers protects the diaphragm from the flow stream, while allowing the valve to be serviced in-line
  • Constructed of cast iron, brass, stainless steel and Nitrile elastomer components, giving an unparalleled service life
  • ¾-inch through 3-inch threaded (N.P.T. or B.S.P.); 3-inch through 6-inch flanged drilled in accordance with ASA16.1 class 125, or BSP4504
  • Compatible with wide range of line fluids including air or water applications
  • Reinforced diaphragms are pre-formed and stress relieved to maximize responsiveness and product life
  • Can be actuated with either air or water as control fluid

Accessories & Options

  • Seal and diaphragm materials available
  • Handles liquid and gases
  • Adaptable to wide variety of control devices
  • Spring assist (open or closed)
  • Position indicator
  • Limit stop for adjustable flow rate control
  • High temperature service
